Recessed TV AVS320SM is a great solution for use in bathrooms, pools and spa centers. Also, it can be a good design idea for the living room, kitchen and even the office.
The front of the bathroom TV is made of tempered glass, and a black frame surrounds the screen. The back of the case is completely made of metal. All necessary connectors on the case are protected by a special cover.
Installation is made using the installation box, which is included in the package for a waterproof TV in the bathroom.
One of the distinguishing features of AVEL moisture-proof TV is its high-quality IPS matrix, which allows you to enjoy watching movies and TV shows. Loud and clear sound is guaranteed by built-in vibration speakers located inside the case.
Show all
Collapse description
Weight of goods in the package: 27000 g
Package dimensions:
984 x 812 x 150 mm
Specifications
- Model
- AVS320SM (Black)
- Smart TV
- Yes
- Screen Finish
- Black Frame
- Frame Material
- Steel
- Screen Material
- Tempered Safety Glass
- Waterproof Rating
- IP65 Front , IPX4 Back
- Screen Size
- 32" (81 cm)
- Screen Type
- LED LCD
- Resolution
- Full HD (1920x1080)
- Brightness
- 350 cd/m2
- Aspect Ratio
- 16:9
- Contrast Ratio
- 1200:1 (typ.)
- Colour Depth
- 16.7 million
- Viewing Angle
- 178°/178° (H/V)
- OS
- Android
- OS version
- 11 (AOSP)
- APP
- Google Play Store,Chrome
- CPU
- RTD2843 ARM Cortex-A55 up to 1.1GHz (Quad core)
- GPU
- Mail G31*2-High speed 700MHz
- RAM
- DDR3 1.5G
- Storage
- 8G
- Speakers
- 2 x Internal Vibration Speakers
- Output
- 2*5W/8Ohms
- DTV Tuner
- DVBT/T2/C/S/S2/ATSC(support H.264/H.265, Dolby+)
- Analogue Tuner
- Video: NTSC/PAL/PAL-M/PAL-N, Audio: BG/DK/I
- USB Host
- Video, pictures and music from USB flash / HDD
- Supported File Types
- Video: MPEG1/2/4,H.264*,H.265*,WMV*,VC1,VP8,VP9,RM*,AVS*,AVS2.0*,Sorenson,Motion JPEG,H.263,AV1,
Audio: PCM,AMR,LPCM,RA*,MPEG1/2/4,AAC*,WMA*,Dolby AC3*,Dolby EAC3*,Dolby AC4*,Dolby*,MPEG-H,DRA,FLAC,VORBIS,
Image: *.JPG,*.BMP,*PNG,*.GIF,.MPO,.JPS,.PNS
- Wi-Fi
- 2.4G/5G, IEEE 802.11 a/b/g/n/ac ,1T1R, 229.4Mbps,Support Wifi 6
- Ethernet
- RJ45 10/100M auto-identification and DHCP
- Bluetooth
- V2.1+EDR/V3.0/V4.x/V5.0
- Touch button
- Power,Menu,Volume+,Volume-,Channel+,Channel-,Source
- TV In / Aerial
- 1 x ICE TYPE TV(75ohm, DVB-T/T2/C/Analogue), 1 x F TYPE TV (S/S2) or 1 x F TYPE(ATSC)
- HDMI Input
- 2 (HDMI1-ARC,HDMI1&2-CEC)
- USB
- 2 (USB2.0)
- Earphone
- 1
- CI slot (CI +)
- 1 (ATSC not available)
- IR pass through
- 1
- DC In (24V)
- 1
- HDMI-CEC (Anynet) Control
- TV can turn on/off automatically when connected to STB or Smart TV box by HDMI
- HDMI-ARC
- Audio Return Channel,TV can return the audio to Amplifier or ARC device
- Working Temperature
- 0°C – +50°C

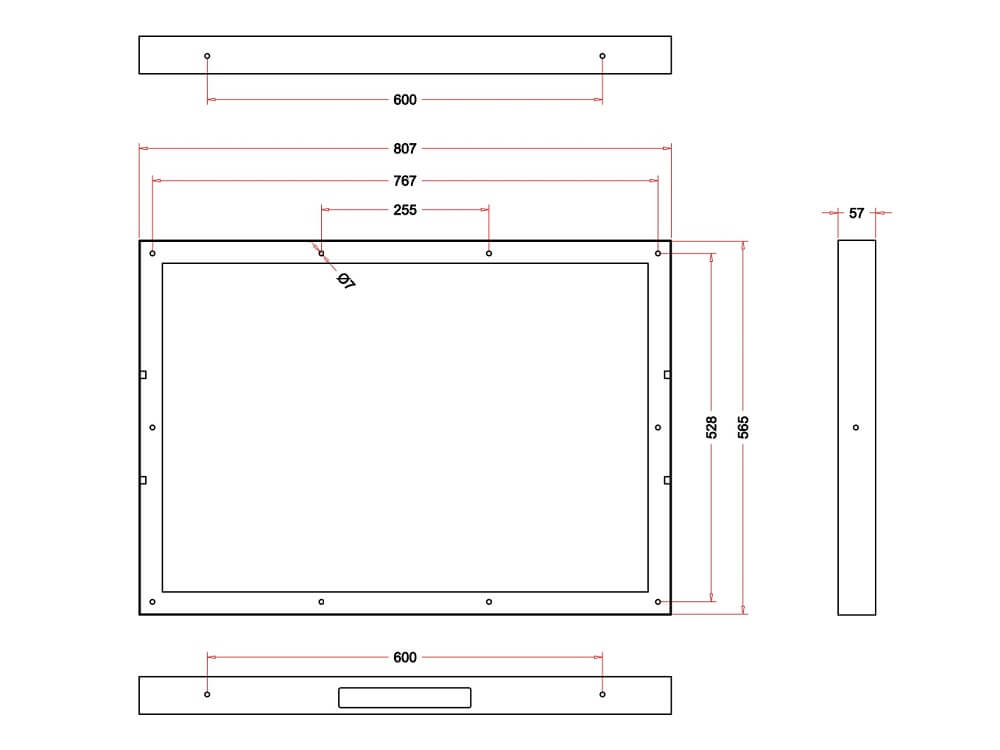

- Recess Size (in-wall installation)
- 807*565*57 mm (WxHxD) / 31.77" *22.24" *2.24" (WxHxD)

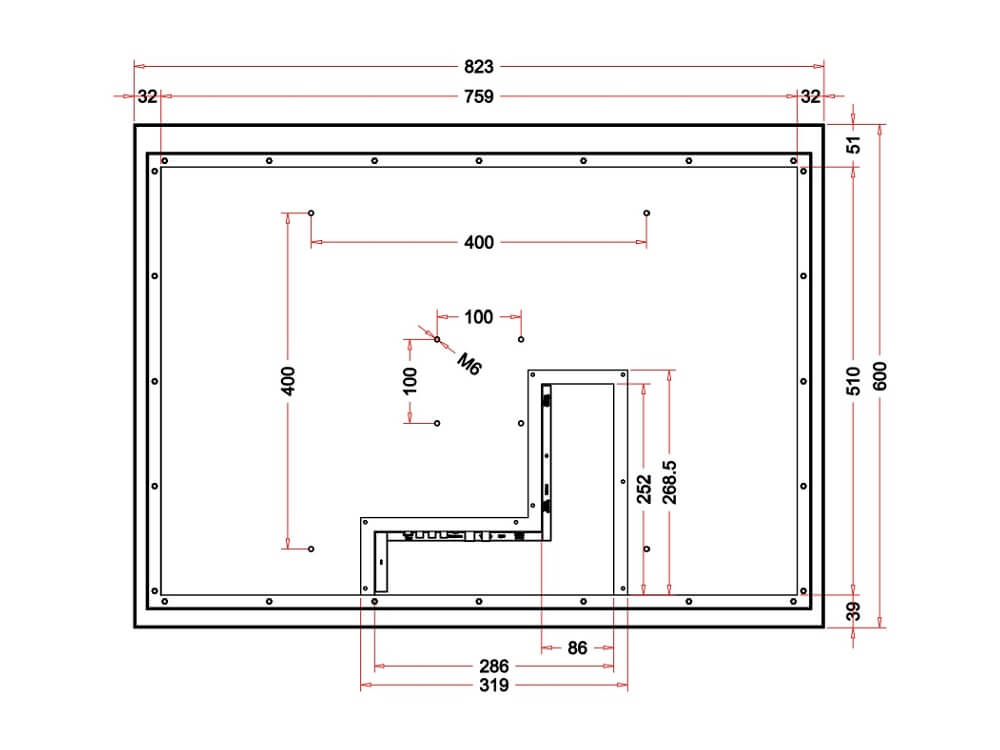

- Wall Mount Compatibility (on-wall installation)
- Vesa (400*400 mm,100*100 mm)
Certifications and Standards
- CE, ROHS, EAC
- Yes
- IPx4 Waterproof Rating
- Yes
- Mains Power
- AC 100-240V (DC 24V/6A adaptor)
- Power Consumption
- 53 W
- Standby Power Consumption
- 2.41 W
- Product Size

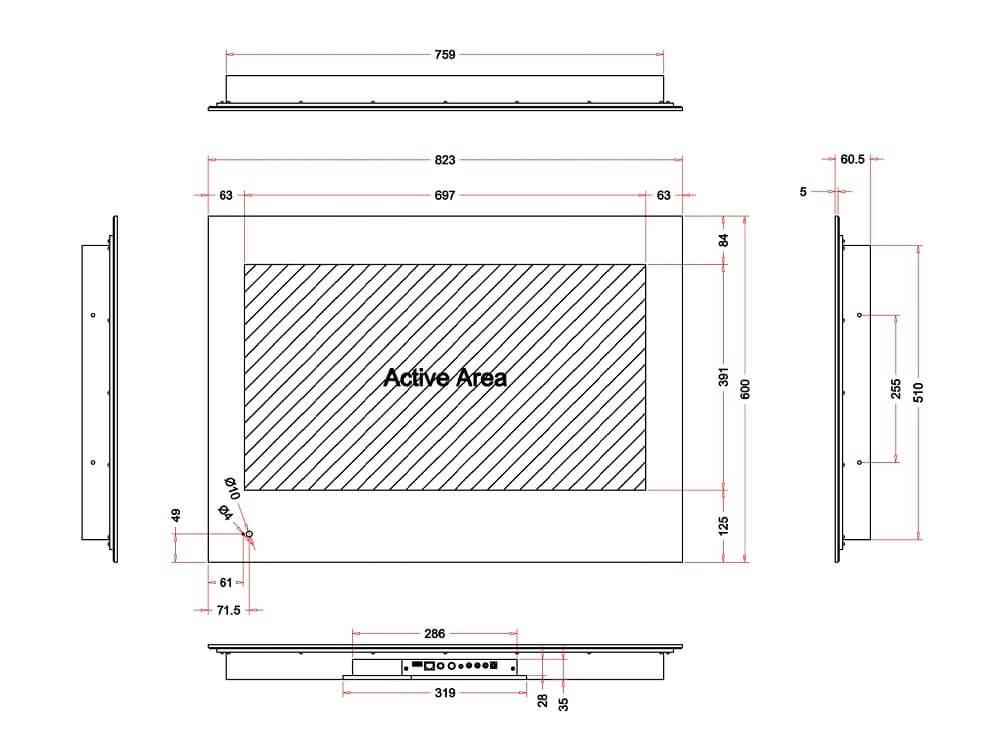

- 823*600*60.5 mm (WxHxD) / 32.40" *23.62" *2.38" (WxHxD)
- Product Weight
- 23 kg / 50.7 lb
- Shipping Size
- 984*150*812 mm (WxDxH) / 38.74" *5.91" *31.97" (WxHxD)
- Shipping Weight
- 27 kg / 59.5 lb
- Remote Control with Wall Holder
- 1 pcs (IP66 waterproof, protection against water jets — don't immerse in water!)
- Air Mouse (BT voice remote control)
- 1 pcs (Non-Waterproof)
- Power Adapter with power cable
- 1 pcs (IP67 waterproof)
- Back Box
- 1 set (with set of screws for in-wall installation)
- User Manual & Installation Guide
- 1 set
