AVS240SM 23,8" Magic Mirror Smart TV

Model: AVS240SM (Mirror)
Will write an opinion

Hit

Price:

$1,299.99

Quantity available: 99

Additional photos and videos

Characteristics Reviews and questions about the product Documentation ⁶

The AVS240SM mirror TV is a built-in waterproof TV that is suitable for installation in bathrooms, kitchens, swimming pools and other areas. Its minimalistic design looks great in any interior.

When it is turned off, the built-in TV looks like an ordinary mirror. But if you turn it on, a bright high-quality LED LCD screen with a size of 23.8 inches will appear on the mirror. This is an amazing sight that is sure to surprise you and your friends!

This mirror TV is built into the wall using a special box, and the cover on the case additionally protects all wires from moisture. Vibration speakers are placed behind the glass, they provide clear and surround sound. If you want, you can also connect amplifiers and soundbars.

Weight of goods in the package: 17000 g

Package dimensions: 885 x 558 x 150 mm

Specifications

Product

Model: AVS240SM (Mirror)
Smart TV: Yes

Design

Screen Finish: Magic Mirror
Frame Material: Steel
Screen Material: Glass
Waterproof Rating: IP65 Front , IPX4 Back

Display

Screen Size: 23.8" (61 cm)
Screen Type: LED LCD
Resolution: Full HD (1920x1080)
Brightness: 700 cd/m2
Aspect Ratio: 16:9
Contrast Ratio: 1000:1 (typ.)
Colour Depth: 16.7 million
Viewing Angle: 178°/178° (H/V)

Operating system

OS: Android
OS version: 11 (AOSP)
APP: Google Play Store,Chrome

Processor and memory

CPU: RTD2843 ARM Cortex-A55 up to 1.1GHz (Quad core)
GPU: Mail G31*2-High speed 700MHz
RAM: DDR3 1.5G
Storage: 8G

Audio

Speakers: 2 x Internal Vibration Speakers
Output: 2*5W/8Ohms

TV System

DTV Tuner: DVBT/T2/C/S/S2/ATSC(support H.264/H.265, Dolby+)
Analogue Tuner: Video: NTSC/PAL/PAL-M/PAL-N, Audio: BG/DK/I

Video (by USB)

USB Host: Video, pictures and music from USB flash / HDD
Supported File Types: Video: MPEG1/2/4,H.264*,H.265*,WMV*,VC1,VP8,VP9,RM*,AVS*,AVS2.0*,Sorenson,Motion JPEG,H.263,AV1,
Audio: PCM,AMR,LPCM,RA*,MPEG1/2/4,AAC*,WMA*,Dolby AC3*,Dolby EAC3*,Dolby AC4*,Dolby*,MPEG-H,DRA,FLAC,VORBIS,
Image: *.JPG,*.BMP,*PNG,*.GIF,.MPO,.JPS,.PNS

Features

Wi-Fi: 2.4G/5G, IEEE 802.11 a/b/g/n/ac ,1T1R, 229.4Mbps,Support Wifi 6
Ethernet: RJ45 10/100M auto-identification and DHCP
Bluetooth: V2.1+EDR/V3.0/V4.x/V5.0

Ports and Connectors

TV In / Aerial: 1 x ICE TYPE TV(75ohm, DVB-T/T2/C/Analogue), 1 x F TYPE TV (S/S2) or 1 x F TYPE(ATSC)
HDMI Input: 2 (HDMI1-ARC,HDMI1&2-CEC)
USB: 2 (USB2.0)
CI slot (CI +): 1 (ATSC not available)
IR pass through: 1
DC In (12V): 1

HDMI

HDMI-CEC (Anynet) Control: TV can turn on/off automatically when connected to STB or Smart TV box by HDMI
HDMI-ARC: Audio Return Channel,TV can return the audio to Amplifier or ARC device

Operating Environment

Working Temperature: 0°C – +50°C

Installation

Recess Size (in-wall installation): 633*430*55 mm (WxHxD) / 24.92" *16.93" *2.17" (WxHxD)
Wall Mount Compatibility (on-wall installation): Vesa (100*100 mm)

Certifications and Standards

CE, ROHS, EAC: Yes
IPx4 Waterproof Rating: Yes

Power

Mains Power: AC 100-240V (DC 12V/4.25A adaptor)
Power Consumption: 39 W
Standby Power Consumption: 0.27 W

Dimensions and Weights

Product Size: 649*463*56 mm (WxHxD) / 25.55" *18.22" *2.20" (WxHxD)
Product Weight: 14.4 kg / 31.7 lb
Shipping Size: 885*150*558 mm (WxDxH) / 34.8" *5.9" *21" (WxHxD)
Shipping Weight: 17 kg / 37.5 lb

Accessories

Remote Control with Wall Holder: 1 pcs (IP66 waterproof, protection against water jets — don't immerse in water!)
Air Mouse (BT voice remote control): 1 pcs (Non-Waterproof)
Power Adapter with power cable: 1 pcs (IP65 waterproof)
Back Box: 1 set (with set of screws for in-wall installation)
User Manual & Installation Guide: 1 set

Warranty

Warranty: 2 Years

In order to leave a review, you need to

User Manual BTV 2023.pdf

2024_SM Installation.pdf

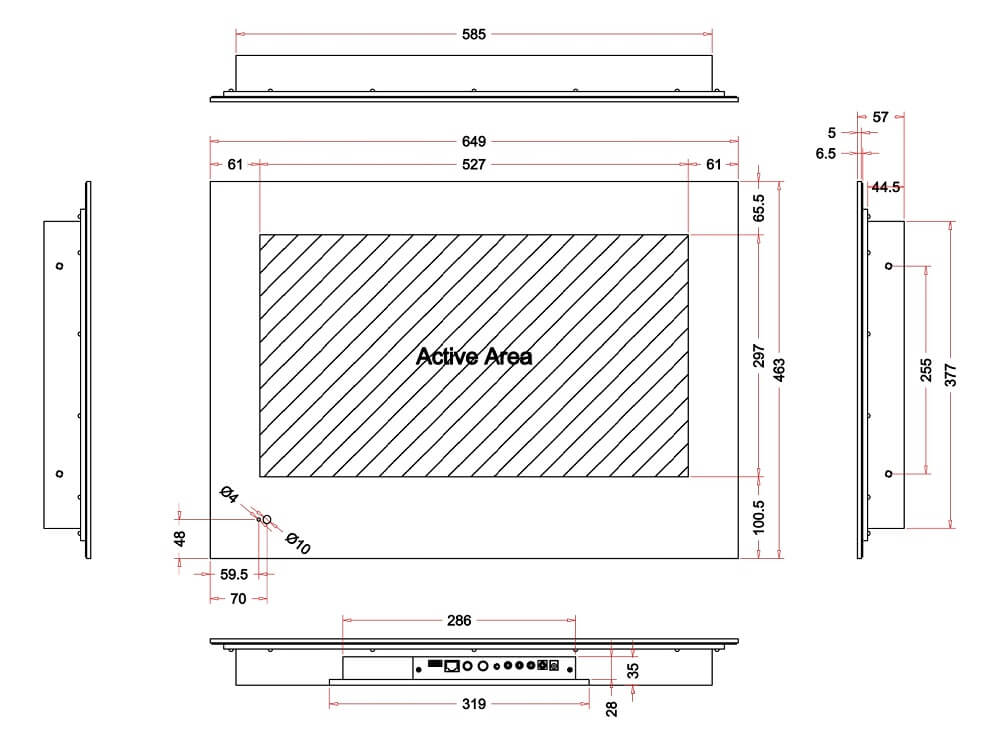

Drawings AVS240SM.jpg

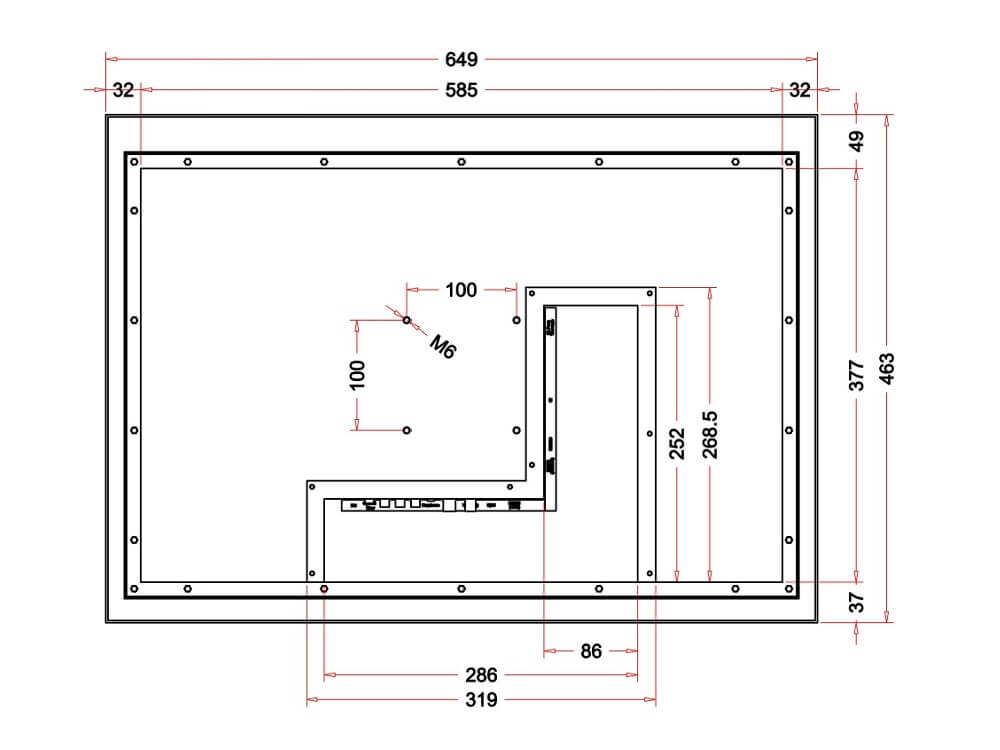

Drawings AVS240SM back.jpg

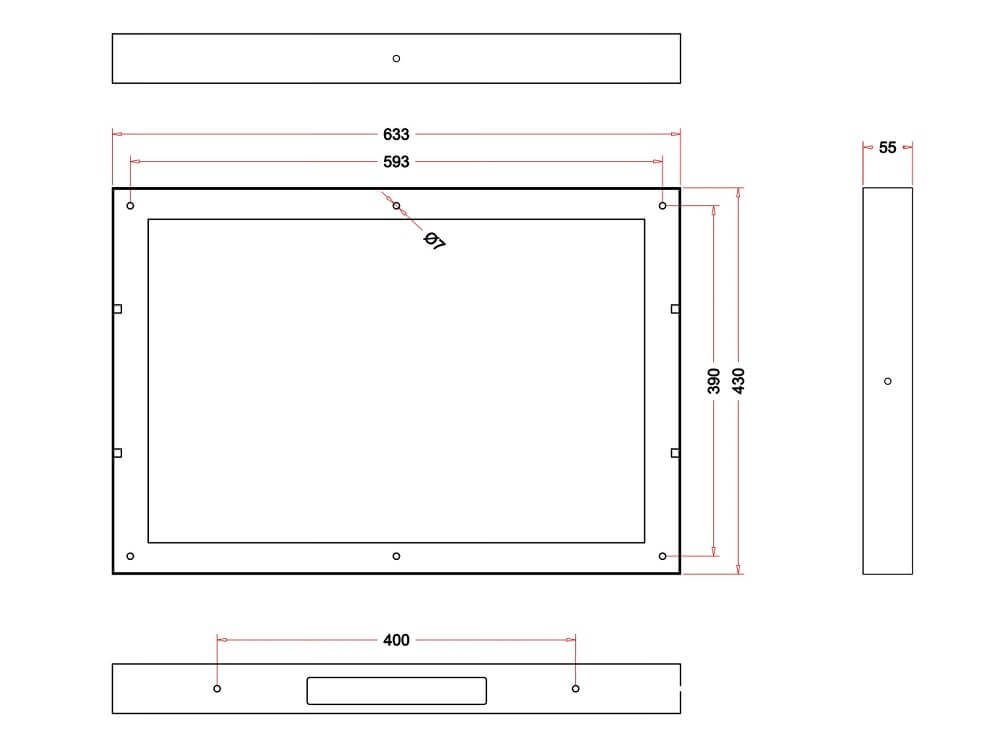

Installation drawings AVS240SM.jpg

Air ventilation of AVEL TV when installed in Sauna.pdf
